品牌:Eink
分辨率:540X960
刷新率:85HZ
接口:并行16口
起订:1片
发货:3天内

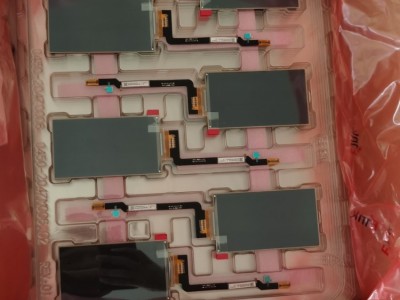

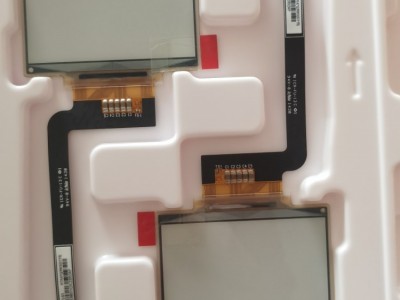

ET047TC1是一种反光电泳电子墨水屏
基于有源矩阵的工艺显示模块
TFT基板。它有4.7英寸的活动区域，540 x 960像素，显示器能够在
2-16灰度（1-4位），取决于显示控制器及其使用的相关波形文件。
2.特点
Carta高对比度反射/电泳技术
540 x 960点分辨率
高反射率
超宽视角
超低功耗
纯反射模式
双稳态
商业温度范围
横向、纵向模式
塑料基板
ET047TC1 is a reflective electrophoretic E Ink®
technology display module based on active matrix
TFT substrate. It has 4.7” active area with 540 x 960 pixels, the display is capable to display images at
2-16 gray levels (1-4 bits) depending on the display controller and the associated waveform file it used.
2. Features
Carta High contrast reflective/electrophoretic technology
540 x 960 dots resolution
High reflectance
Ultra wide viewing angle
Ultra low power consumption
Pure reflective mode
Bi-stable
Commercial temperature range
Landscape, portrait mode
Plastic substrate
For more information about this product, please contact 18680600159 Jacky
