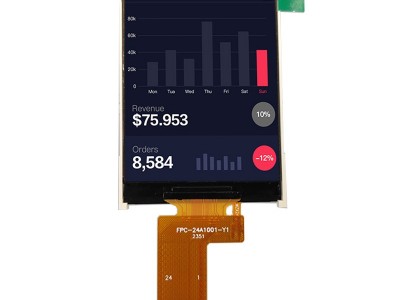

GeneralSpecifications 基本规格
1 LCD Size 液晶面板尺寸 2.4 inch
2 Panel Type 面板类型 TN
3 Resolution 分辨率 240xRGBx320 Pixel
4 Display Mode 显示模式 Normally White
5 Number of Colors 颜色数量 262K
6 Viewing Direction 视角 12 :00 o’clock
7 Luminance 亮 度 300 cd/m2
8 Module Size 模组尺寸 42.72(L)×60.26(W)×2.3(T) mm
9 Panel Active Area 可视区域 36.72(H)x48.96(V) mm
10 Pixel Pitch 像素尺寸 0.051(H)x0.153(V) mm
11 Pixel Arrangement 像素排列 RGB Stripe
12 Weight 重 量 TBD g
13 Driver IC 驱动芯片 ST7789T3
14 Light Source 背光源 Four LEDs in series
15 Interface 接口方式 MCU16Parallel8080
16 Operating Temperature工作温度 -10~+60 ℃ -
17 Storage Temperature存储温度 -20~+70 ℃ -
